Create Dynamic SAPUI5 Tiles With JSON

Postingan kali ini saya akan sharing cara membuat menu tiles di SAPUI5 secara dinamis dengan menggunakan json, ok langsung saja kita buat project baru di eclipse jika belum tau cara membuat project baru sapui5 bisa dilihat DISINI,

1. New Project



 2. Project Name


 3. Create View -> javascript


4. Setelah klik tombol finish diatas maka akan langsung ter-create structure project sapui5 seperti berikut :index.view, index.controller dan index.html


 sekarang kita tambahkah folder baru didalam folder WebContent dengan nama asset dan didalam folder asset kita buat dua buah folder dengan nama json dan icon



lalu tambahkan file type json didalam folder json dengan nama tile.json dengan cara klik kanan di folder json dan pilih New->file lalu tuliskan nama file dan extensinya (tile.json) lalu finish, dan didalam folder icon tambah 2 buah gambar dengan nama 1.png dan 2.png (nama gambar gak harus sama :D)




untuk iconnya saya menggunakan gambar dibawah ini :

setelah menambah file json dan icon, kita buka file index.html lalu ubah source code nya seperti berikut :


<!DOCTYPE HTML>
<html>
 <head>
  <meta http-equiv="X-UA-Compatible" content="IE=edge">
  <meta http-equiv='Content-Type' content='text/html;charset=UTF-8'/>

  <script src="resources/sap-ui-core.js"
    id="sap-ui-bootstrap"
    data-sap-ui-libs="sap.m, sap.suite.ui.commons, sap.ui.commons"
    data-sap-ui-theme="sap_bluecrystal">
  </script>
  <!-- only load the mobile lib "sap.m" and the "sap_bluecrystal" theme -->

  <style type="text/css">
   element.style {
       overflow-x: hidden;
       overflow-y: auto;
       background-color: #008b8b;
   }

   .sapMPage>section {
       position: absolute;
       top: 0;
       left: 0;
       right: 0;
       bottom: 0;
       background-color: darkcyan;
   }

   .sapMGT {
       display: inline-block;
       overflow: hidden;
       background: #dddddd;
       border-radius: 0.25rem;
       position: relative;
       box-sizing: border-box;
       border: 1px transparent dotted;
       outline: none;
       margin: 5px;
   }

   .sapMPanelHdr {
       font-weight: normal;
       font-size: 1.5rem;
       font-family: Arial,Helvetica,sans-serif;
       text-shadow: 0 0.0625rem 0 #ffffff;
       color: #fbf6f6;
       background-color: transparent;
   }

  </style>

  <script>
    sap.ui.localResources("ui5_tile");
    var app = new sap.m.App({initialPage:"idindex1"});
    var page = sap.ui.view({id:"idindex1", viewName:"ui5_tile.index", type:sap.ui.core.mvc.ViewType.JS});
    app.addPage(page);
    app.placeAt("content");
  </script>

 </head>
 <body class="sapUiBody" role="application">
  <div id="content"></div>
 </body>
</html>

buka index.view.js dan ganti bagian title menjadi seperit berikut :


sap.ui.jsview("ui5_tile.index", {

 /** Specifies the Controller belonging to this View.
 * In the case that it is not implemented, or that "null" is returned, this View does not have a Controller.
 * @memberOf ui5_tile.index
 */
 getControllerName : function() {
  return "ui5_tile.index";
 },

 /** Is initially called once after the Controller has been instantiated. It is the place where the UI is constructed.
 * Since the Controller is given to this method, its event handlers can be attached right away.
 * @memberOf ui5_tile.index
 */
 createContent : function(oController) {

   return new sap.m.Page({
   title: "SAPUI5 TILES WITH JSON",
   content: [panelContainer

   ]
  });
 }

});

 Save lalu jalankan dan lihat hasilnya di browser, cara menjalankannya klik kanan pada file index.html

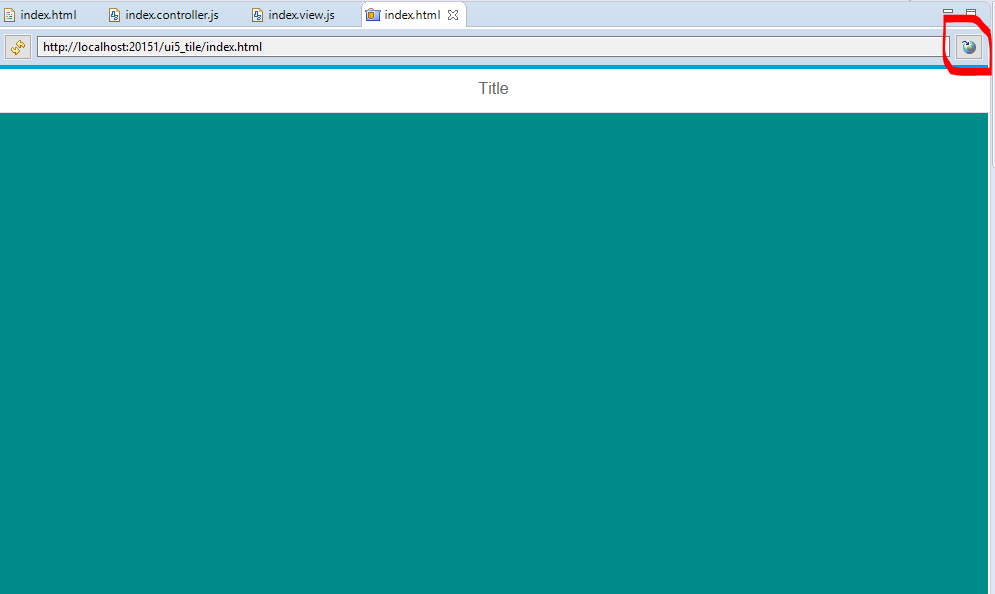

maka akan muncul satu tab baru di eclipsi seperti berikut :


untuk membuka di browser klik yang diberi tanda merah dan hasilnya di browser seperti berikut :



selanjutnya buka file tile.json yang ada di folder asset/json/tile.json dan masukkan file json berikut :

{
  "Tiles": [
    {
      "ContentPanel": [
        {
          "frameTypeGnt": "OneByOne",
          "headerGnt": "Purchase Requisition",
          "iconGnt": "asset/icon/1.png",
          "pressGnt": "",
          "sizeGnt": "M",
          "stateGnt": "Loaded",
          "subHeaderGnt": "Create Purchase Requisition"
        },
        {
          "frameTypeGnt": "OneByOne",
          "headerGnt": "Purchase Order",
          "iconGnt": "asset/icon/2.png",
          "pressGnt": "",
          "sizeGnt": "M",
          "stateGnt": "Loaded",
          "subHeaderGnt": "Create Purchase Order"
        },
        {
          "frameTypeGnt": "OneByOne",
          "headerGnt": "Material Stock",
          "iconGnt": "asset/icon/1.png",
          "pressGnt": "",
          "sizeGnt": "M",
          "stateGnt": "Loaded",
          "subHeaderGnt": "Display Material Stock"
        },
        {
          "frameTypeGnt": "OneByOne",
          "headerGnt": "Process Order",
          "iconGnt": "asset/icon/2.png",
          "idGenericTile": 1,
          "pressGnt": "",
          "sizeGnt": "M",
          "stateGnt": "Loaded",
          "subHeaderGnt": "Create Process Order"
        },
        {
          "frameTypeGnt": "OneByOne",
          "headerGnt": "Confirm Order",
          "iconGnt": "asset/icon/1.png",
          "idGenericTile": 1,
          "pressGnt": "",
          "sizeGnt": "M",
          "stateGnt": "Loaded",
          "subHeaderGnt": "Confirm Process Order"
        }
      ],
      "headerTextPnl": "TRANSACTION",
      "idPanel": 1
    },
    {
     "ContentPanel": [
     {
          "frameTypeGnt": "OneByOne",
          "headerGnt": "Report1",
          "iconGnt": "asset/icon/1.png",
          "pressGnt": "",
          "sizeGnt": "M",
          "stateGnt": "Loaded",
          "subHeaderGnt": "Report1"
        },
        {
          "frameTypeGnt": "OneByOne",
          "headerGnt": "Report2",
          "iconGnt": "asset/icon/2.png",
          "idGenericTile": 1,
          "pressGnt": "",
          "sizeGnt": "M",
          "stateGnt": "Loaded",
          "subHeaderGnt": "Report2"
        },
        {
          "frameTypeGnt": "OneByOne",
          "headerGnt": "Report3",
          "iconGnt": "asset/icon/1.png",
          "idGenericTile": 1,
          "pressGnt": "",
          "sizeGnt": "M",
          "stateGnt": "Loaded",
          "subHeaderGnt": "Report3"
        }
     ],
     "headerTextPnl": "REPORTS",
       "idPanel": 2
    }
  ]
}

kemudian buka file index.view.js lagi dan tambahkan source code seperti berikut :


sap.ui.jsview("ui5_tile.index", {

 /** Specifies the Controller belonging to this View.
 * In the case that it is not implemented, or that "null" is returned, this View does not have a Controller.
 * @memberOf ui5_tile.index
 */
 getControllerName : function() {
  return "ui5_tile.index";
 },

 /** Is initially called once after the Controller has been instantiated. It is the place where the UI is constructed.
 * Since the Controller is given to this method, its event handlers can be attached right away.
 * @memberOf ui5_tile.index
 */
 createContent : function(oController) {

  //Image Component
  var image = new sap.ui.commons.Image({
   src:"{iconGnt}",
   width:"60px",
      height:"60px"
  })

  //Tiles
  var myTiles = new sap.suite.ui.commons.GenericTile({
   header:"{headerGnt}",
            subheader:"{subHeaderGnt}",
            size:"{sizeGnt}",
            frameType:"{frameTypeGnt}",
            headerImage:"{headerImageGnt}",
            state:"{stateGnt}",
            imageDescription: "{pressGnt}",
   tileContent:new sap.suite.ui.commons.TileContent({
          content:[image]
         }),

//            press: oController.eventTile2
  })

  //Panel to display tiles
  var myPanel = new sap.m.Panel({
   headerText : "{headerTextPnl}",
   backgroundDesign : "Transparent",
   content : {
     path : "ContentPanel",
     template : myTiles,
     templateShareable:true
   }
  })

  //panel to display myPanel
  var panelContainer=new sap.m.Panel({
   backgroundDesign : "Transparent"
  });

  //Bind JSON to Panel
  panelContainer.bindAggregation("content", "/Tiles", myPanel);

   return new sap.m.Page({
   title: "SAPUI5 TILES WITH JSON",
   content: [panelContainer

   ]
  });
 }

});

 dan tambahkan source code berikut didalam file index.controller.js


onInit: function() {
  var oModel = new sap.ui.model.json.JSONModel();
  oModel.loadData("asset/json/tile.json"); //load json file
  sap.ui.getCore().setModel(oModel);
 },

dan silahkan refresh kembali aplikasinya didalam browser jika berhasil makan tampilannya akan seperti berikut :

sekian sharing kali ini semoga bermanfaat terimakasih :D
